Product Overview

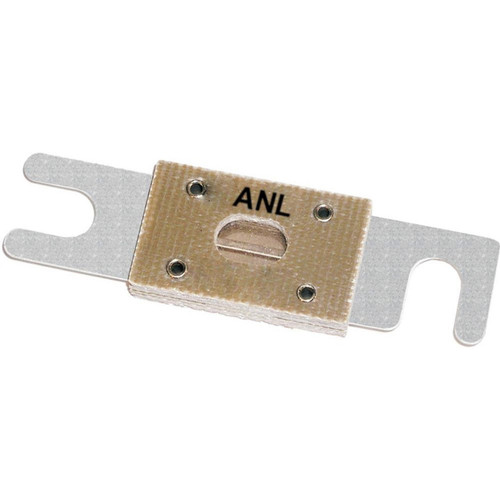

ANL Fuse - 250 Amp
Safeguard your vessel's electrical system with the Blue Seas ANL Fuse - 250 Amp. This critical component provides robust circuit protection for high-current applications, ensuring peace of mind on the water. Engineered for superior performance and reliability, this ignition-protected fuse is a must-have for any serious boater.
Key Features
- **250A Amperage Rating:** Handles high-current demands of essential onboard systems.
- **Ignition Protected (SAE J1171 Compliant):** Safe for installation in gasoline-powered boats, minimizing fire risks.
- **High Interrupt Capacity (6000A @ 32V DC):** Provides superior protection against short circuits and overloads, exceeding ABYC requirements for main DC circuit protection.
- **Visible Blow Indication:** Allows for quick and easy identification of a blown fuse.
- **Silver-Plated Connectors:** Ensures optimal conductivity and resists corrosion for long-lasting performance.
- **Compatible with All ANL Fuse Blocks:** Seamlessly integrates with standard ANL fuse blocks for easy installation.
- **Lightweight and Compact:** Minimizes space requirements without compromising performance.
Specifications
Amperage250A
Ignition ProtectedYes
Maximum Voltage32V DC
Interrupt Capacity6000A @ 32V DC
Weight0.09lb (0.04 kg)
Works WithAll ANL Fuse Blocks
Meets the following Regulatory SpecificationsBlow Delay Curve
The Captain's Take
After years at sea, I've learned the hard way that reliable electrical systems are non-negotiable. The Blue Seas ANL Fuse - 250 Amp is my go-to for critical circuit protection. It's built to withstand the harshest marine environments and provides the peace of mind I need knowing my vessel's electrical system is secure. Don't skimp on safety – invest in the best.
